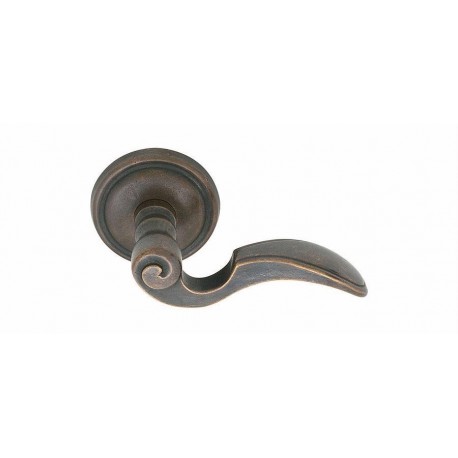

Napoli Lever Lost Wax Cast Bronze Passage Leverset

Heavy Duty Solid Brass Single Cylinder Leverset with Napoli Lever from the Lost Wax Cast Bronze Collection

Emtek's passage leversets use traditional American latches complete with a variety of trim styles, handcrafted from authentic materials. The knobset is operated by a knob from both the interior and exterior. With the passage function, the door does not lock from either side. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes.

The Lost Wax Cast Bronze Collection's knob / lever handles are supported by springs mounted behind the rosettes and sideplates, which return the handles back to the rest position and prevent lever sag. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates "handle wobble" when tightened. Emtek's threaded tubes are machined brass to ensure good threads and prevent corrosion


Material: Lost Cast Bronze

Passage Set
Door Thickness: 1 3/8" or 1 3/4" (please specify)
Backset: 2-3/8" or 2-3/4"For detailed information on all options please click on "view specs"Latch Type

1/4" Radius Corners
Square CornersBackset Option

Standard 2 3/8"
2 3/4"Handing Option

Left
Right

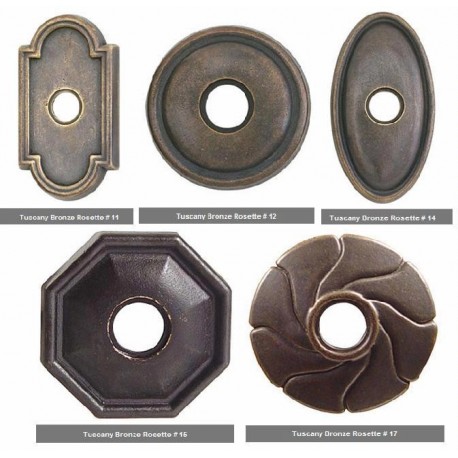

N11 Rosette - 71011
N12 Rosette - 71012
N14 Rosette - 71014
N15 Rosette - 71015
N17 Rosette - 71017
