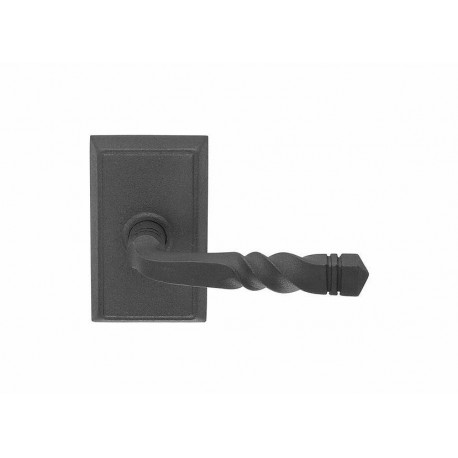

San Carlos Lever Wrought Steel Privacy Leverset

Heavy Duty Solid Brass Single Cylinder Leverset with San Carlos Lever from the Wrought Steel Collection

Emtek's privacy leversets use traditional American locks and latches complete with a variety of trim styles, handcrafted from authentic materials. The leverset is operated by a lever from both the interior and exterior. With the privacy function, the door is locked by a thumbturn from the interior. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes.

The Wrought Steel Collection's knob / lever handles are supported by springs mounted behind the rosettes and sideplates, which return the handles back to the rest position and prevent lever sag. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates "handle wobble" when tightened. Emtek's threaded tubes are machined brass to ensure good threads and prevent corrosion

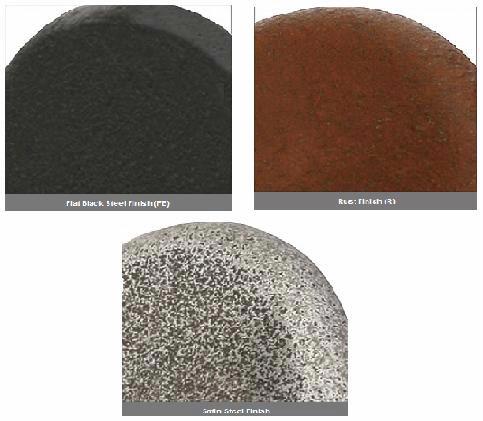

Material: Wrought Steel

Privacy Set
Door Thickness: 1 3/8" or 1 3/4" (please specify)
Backset: 2-3/8" or 2-3/4"For detailed information on all options please click on "view specs"Latch Type

1/4" Radius Corners
Square CornersBackset Option

Standard 2 3/8"
2 3/4"Handing Option

Left

Right

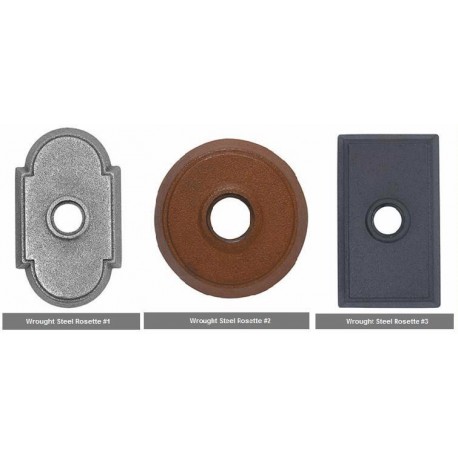

N1 Rosette - 7101
N2 Rosette - 7102
N3 Rosette - 7103
