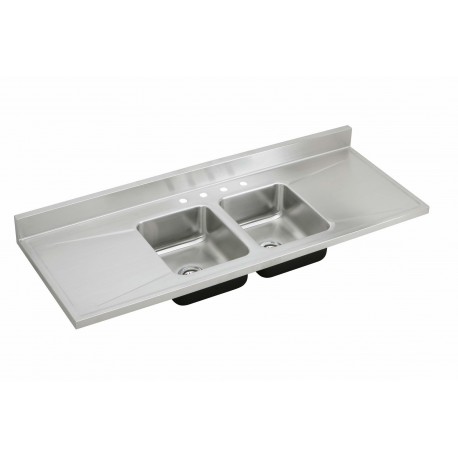

Double Bowl Sink with Double Work Surface D6029

Double Bowl Sink Top with Double Work Surface
N18 gauge, type 304 stainless steel sinktop with integral bowls, fan pitched drainboards and backsplash. All exposed surfaces hand-blended to a lustrous highlighted Lustertone® satin finish


Designed for use with standard size base cabinet


Underside is fully undercoated
Sound Deadening: Full Spray
Minimum Cabinet Size: 60"

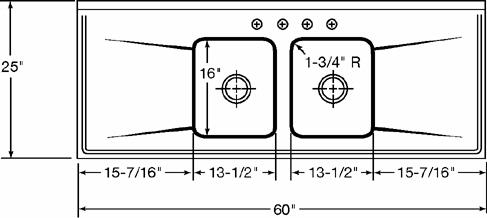

Sink Dimensions: L: 60" W: 25"
Primary Bowl Depth: 7 1/2"
Both Bowl Dim.: 13 1/2' x 16' x 7 1/2'
Faucet Holes: 4

Coved Corners: 1-3/4" radius

Sinktop Thickness: 1-1/2"

Backsplash: 4" high, full length, 1/4" coved corner

Outside edge of sink and drainboards have a 5/32" raised rim

Drain Opening: 3-1/2"
Each unit has wood mounting strips attached to underside for fastening top to cabinet.
Code Compliance: CSA, IAPMO
